Insulated Panels
We translate our clients' visions into reality
scroll downHeating or cooling constitutes a significant portion of a building's operating expenses. Hence, it's crucial for every building to incorporate effective thermal insulation tailored to its specific usage. Aragon provides metal building roll insulation laminated with foil or reinforced kraft, or white metalized scrim craft vapor barrier. Our metal building insulation demonstrates low thermal conductivity, ensuring optimal energy efficiency.
Aragon's roofing and wall cladding solutions are meticulously crafted for each project, tailored to meet the unique requirements of our clients. Whether it's single or double-skin insulated roof and wall cladding, we've achieved a significant breakthrough in delivering a versatile, high-specification system. The resulting cost efficiency makes it an attractive option for all users seeking superior insulation values for energy-efficient roofs and walls.
Single-skin insulated roof and wall construction involves using metal building roof insulation beneath the cladding as underdeck insulation. The metal building insulation is rolled over the purlins or girts, and then the external cladding, such as SRS/SWS, is fixed to the secondary framing through the insulation. From inside the building, only the vapor barrier is visible.
Double-skin insulated roof construction involves internal liner panels directly screwed to the secondary framing, with sub-girts screwed through spacer blocks and liner sheets to the purlins below. Metal building roll insulation with a vapor barrier is then laid over the sub-girts, and finally, the outer panel is screwed to the inside face of the girts, with the external sheet and insulation fixed on the outside of the building.

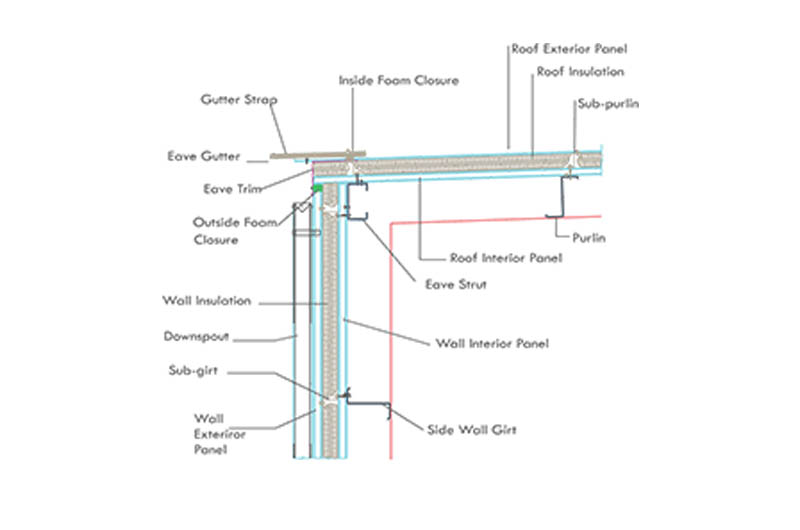

Roof and Wall Double Skin with Insulation (Sub-Girt/Purlin)

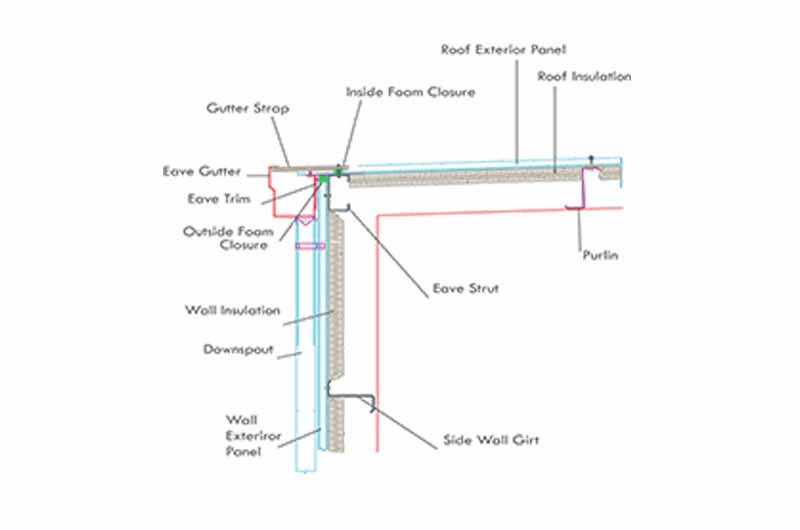

Roof and Wall Single Skin with Insulation
